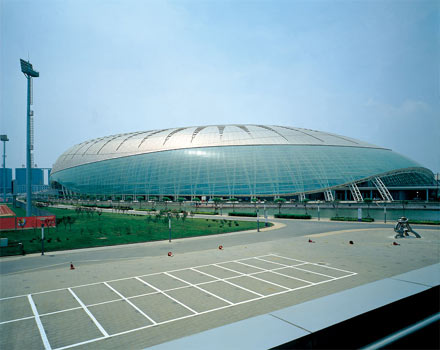

'Water Drop' – Tianjin Olympic Center Stadium

(Yuanda Enterprise Group)
Updated: 2008-07-31 23:39

Point-supported glass curtain wall consists of glass face plate, supporting structure, connection glass face plate and supporting device of supporting structure, belongs to the up to date generation of unframed glass curtain wall structure. The point supported glass curtain wall adopts colored glaze glass with dots, and forms different visual effect by different combination of colored glaze dots. The design adopts the effect of fitting curved face by fold line plate glass, owing to a little bit larger curvature radius and less than 2 °of maximum deflection between the glass plates, less than 10mm of height difference between interfacing glasses (glass thickness 23.52mm, glue line 12mm), that ensures the whole transition of glass and ensures the best effect on the external elevation

Roofing drainage system Metal compound roof mostly adopts the system of roof plate of erection lockrand to realize drainage. The drainage gutter adopts design of culvert application type that ensures the function of roof drainage, as well as artistic outside view effect of the roof.
